Automatic Winding Machine.900RPM Cable Wiring Coil Winding Machine,Automatic Tube Amplifier Winding Machine w/LCD Display,Coil Tape Fishing Line Winder

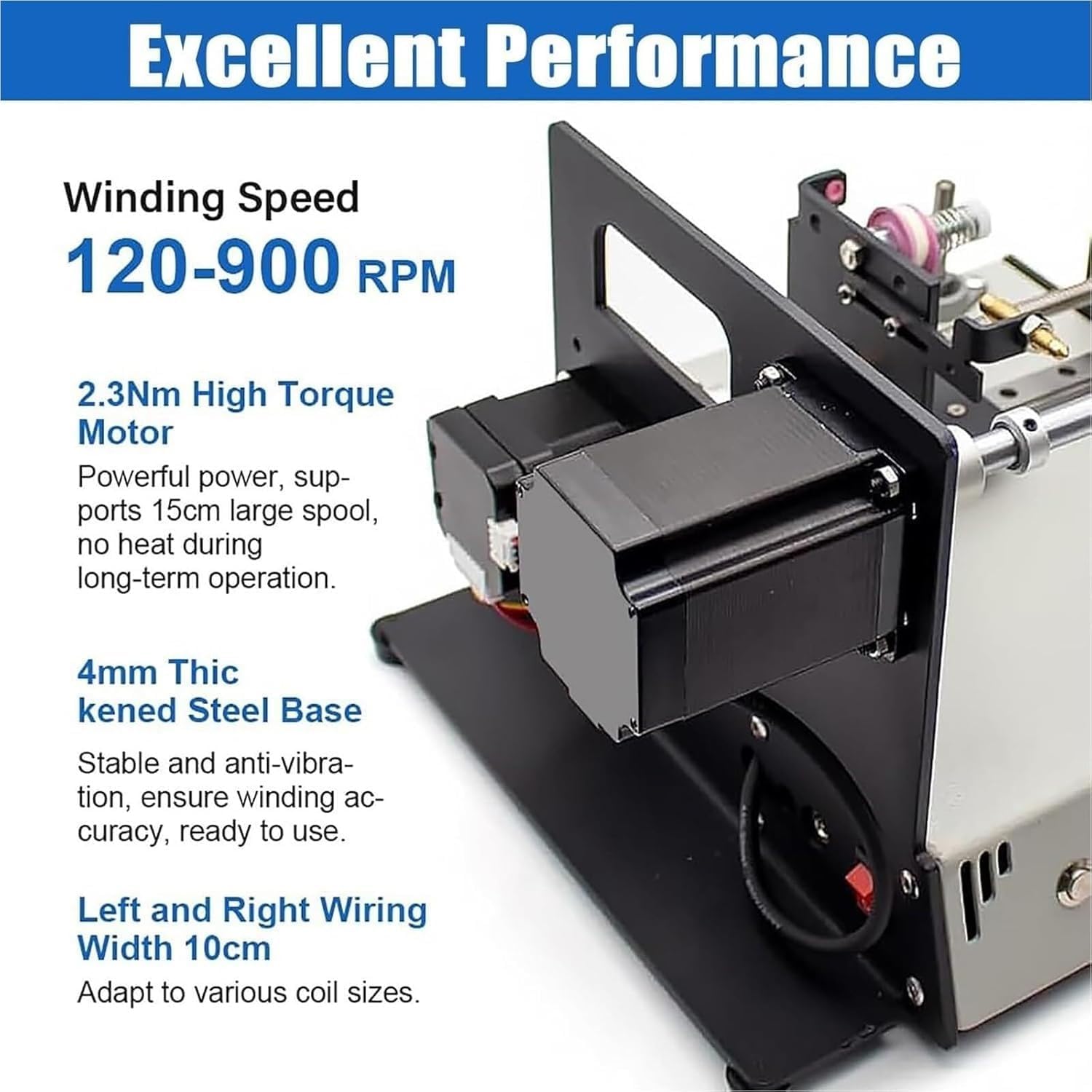

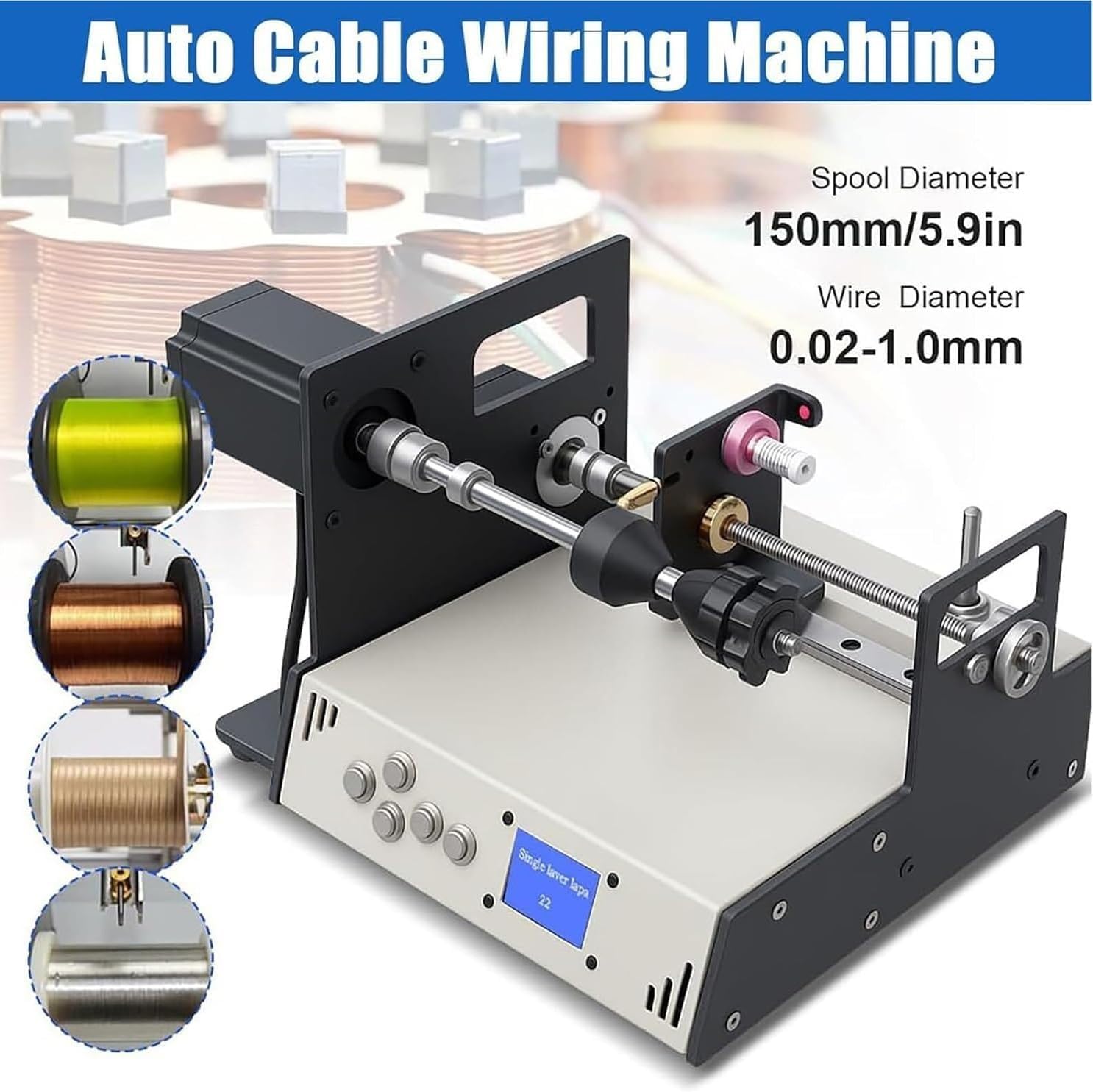

Features: Records winding parameters and production data Capable of winding coils, tape, silk thread, fishing line, etc. Winding accuracy is controlled within ±0.01mm, exceeding the 5% error of manual winding. Slide rail accuracy is 0.01mm, and the winding wire diameter ranges from 0.02mm to 1.0mm. Equipped with wire break detection, tension compensation, and automatic wire change functions, it supports 24-hour continuous production. Winding speeds can reach 120-900 rpm, and a single machine can produce thousands of coils per day. 2.3Nm High Torque Motor: Powerful power, supports 15cm large spool, no heat during long-term operation. 4mm Thickened Steel Base: Stable and anti-vibration,ensure winding accuracy, ready to use. Specifications: Name: Automatic Winding Machine / Automatic Wire Arrangement / Automatic Winding Machine Color: Sliver and Black Accuracy: 0.01MM (closed-loop motor cable) Torque: 2.3NM Speed: 2-15 laps per second, 120-900 laps per minute Speed ??Adjustment: Yes Forward/Reverse: Yes Support Spool Diameter: 15cm（5.91in） Winding Width Left/Right: 10cm Slide Accuracy: 0.01mm (Closed-Loop Motor Wiring) Winding Diameter: 0.02-1.0mm Speed: 2-15 rpm, 120-900 rpm Weight: 7 kg Size: 30x30x25cm Package Includes: 1 x Automatic Winding Machine Rated voltage (appliances or chargers): AC110-240/50HZ;

• Wide Compatibility & Flexibility: Compatible with enameled wire, nylon wire, resistance wire, optical fiber, 3D printing consumables, fishing line, and silk thread.
• Coil Winding Machine: Capable of winding coils, tapes, threads, and fishing lines with a 4 mm thick steel base, ready to use upon hand. The slide table precision is 0.01 mm, and the winding diameter is 0.02 mm-1.0 mm
• Precise Wiring: The machine with automatic wire arrangement function, winding pitch accuracy up to ±0.01 mm, improves the consistency of finished products. Avoid problems such as coil loosening and rubbing
• 120-900 RPM Adjustable Speed: Automatic Cable Tie Winding Machine By inputting parameters, the program intelligently adjusts wire width, speed, total number of turns, number of turns per layer, length, direction, and more (coarse and fine adjustments are possible)
• Automatic Wiring: User interface is simple and intuitive, with adjustable winding direction, pauseable at any time during winding, and automatic saving of winding parameters. Winding is neat and precise, and the number of turns can be set as needed, meeting the needs of large-scale production
