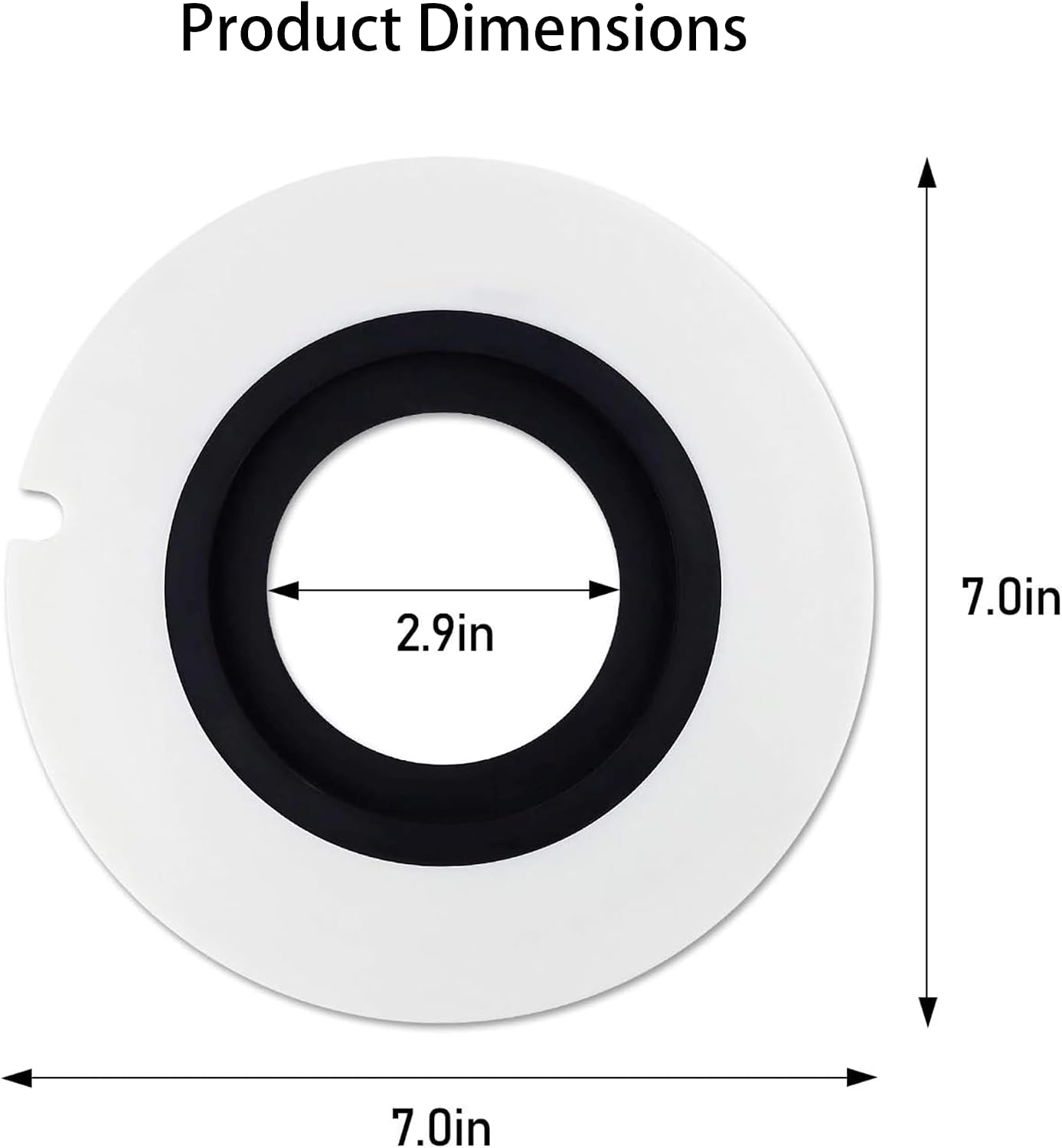

385311462 385310677 RV Toilet Seal Kit Fits for Dometic Sealand VacuFlush Toilets 110 111 210 510 - Without Overflow Holes

【Perfect Fit Models：】 110,111,210,510,510H, 511,711-M28 711-98C,712-TM09,848,910,911,2011 【Supported Models Partial Listed】 Dome-tic / Sealand: 506+, 511H, 547+, 548+, 706, 709, 748, 749 806, 808, 847, 848, 1147, 1148, 2010, 2011, 5006, 5047, 5048, 5049 EcoVac 146-149 【DOES NOT REPLACE SEAL ON: 300, 310, 320 series Dome-tic toilets】 【Easy to Install】 1.Turn off the water switch.Press the flush pedal to drain water from the toilet 2.Remove base cover 3.Lose the stainless steel strip and remove the plastic half clamp to connect the porcelain and plastic base 4.Tilt the porcelain bowl forward, grab the vacuum breaker attached to the back of the toilet, and pull it out of the toilet. Put the toilet aside 5.Remove original kit.Check flush balls for gaps, scratches or mineral deposits. Cleaning or replacement as necessary 6.Place the large plastic disc on the top of the thin seal, through a ring of thin seal raised in the center of the large disc 7.Place seal and disk assembly on top of flush ball 8.Place the porcelain back on the toilet base, align the notch with the pin on the base, and align the bowl outlet with the flush ball. Then insert the vacuum breaker into the back toilet and push it into the rubber seal ring 9.Reinstall plastic half clip under loose steel strip, tighten stainless steel clamp 10.Reinstall pedestal cover, turn on water

• Fit for Most Models: 385311462 385310677 RV Toilet Seal Replacement Fits a wide range of Do-metic Sealand pedal flush toilets 506+, 511H, 547+, 548+, 706, 709, 748, 749, 806,808,847,848, 1147, 1148, 2010, 2011, 5006, 5047, 5048, 5049 VacuFlush: 168, 606, 647, 648, 1006, 1008, 1047, 1048, 1049, 1106, 5146, 5148, 5149
• Applications: Replaces 385311462, compatible with Dome-tic, Sealand, VacuFlush and travel trailer RV camping toilets，the RV toilet seal won’t be broken easily, you can use it for a long time
• Anti-leakage Design: 385311462 rv toilet seal is upgraded design with heavy-duty teflon disk that the white seal ring has a raised groove aligned with the black seal from shifting during installation, used to fix the issue of leakage
• When to Replace: You need to replace the 385311462 toilet seal if your toilet has symptoms as follows: Awful smell/ Water leaking out of the toilet bowl/ Old seal damaged
• Products are made of high-quality materials and rigorously tested to ensure resistant and longevity
